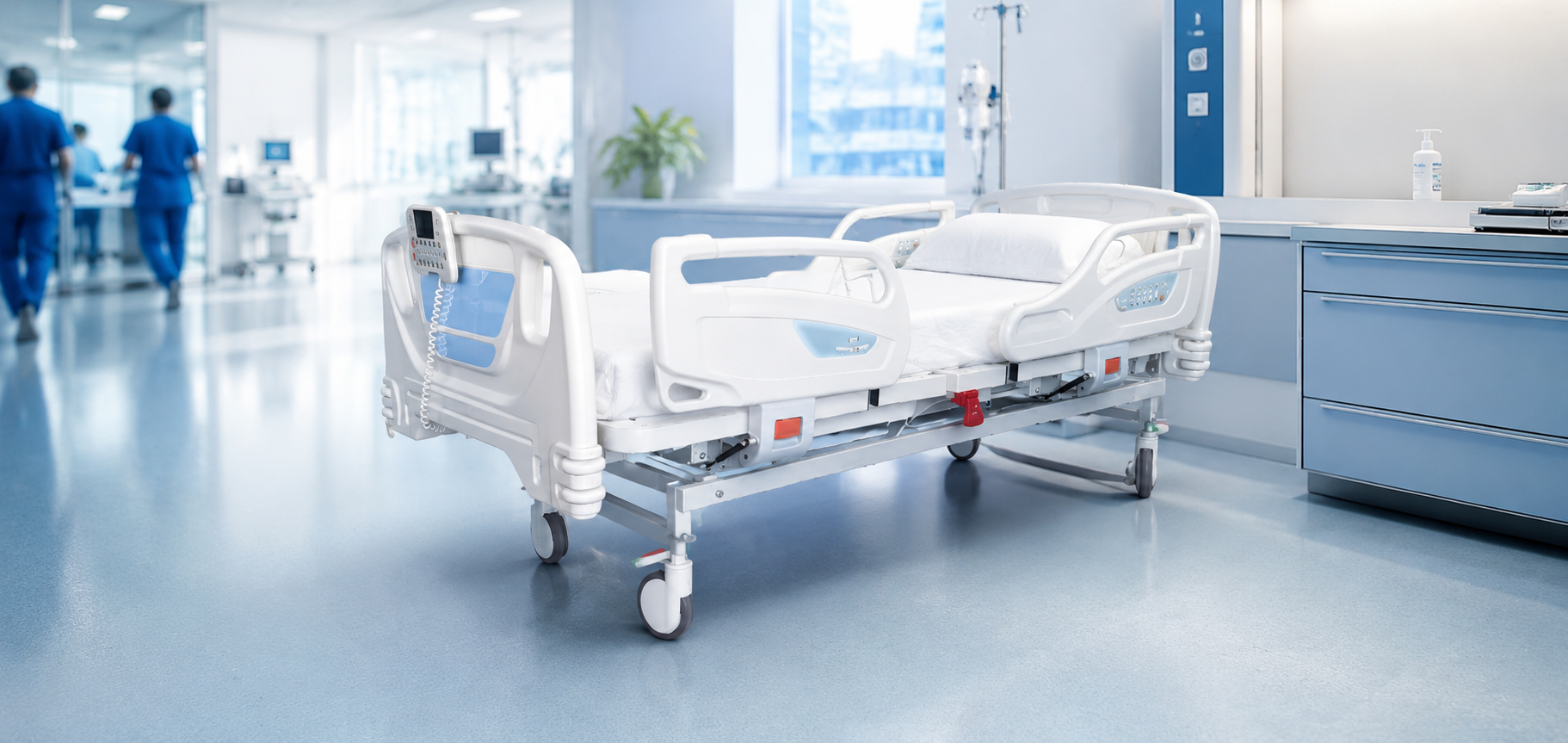

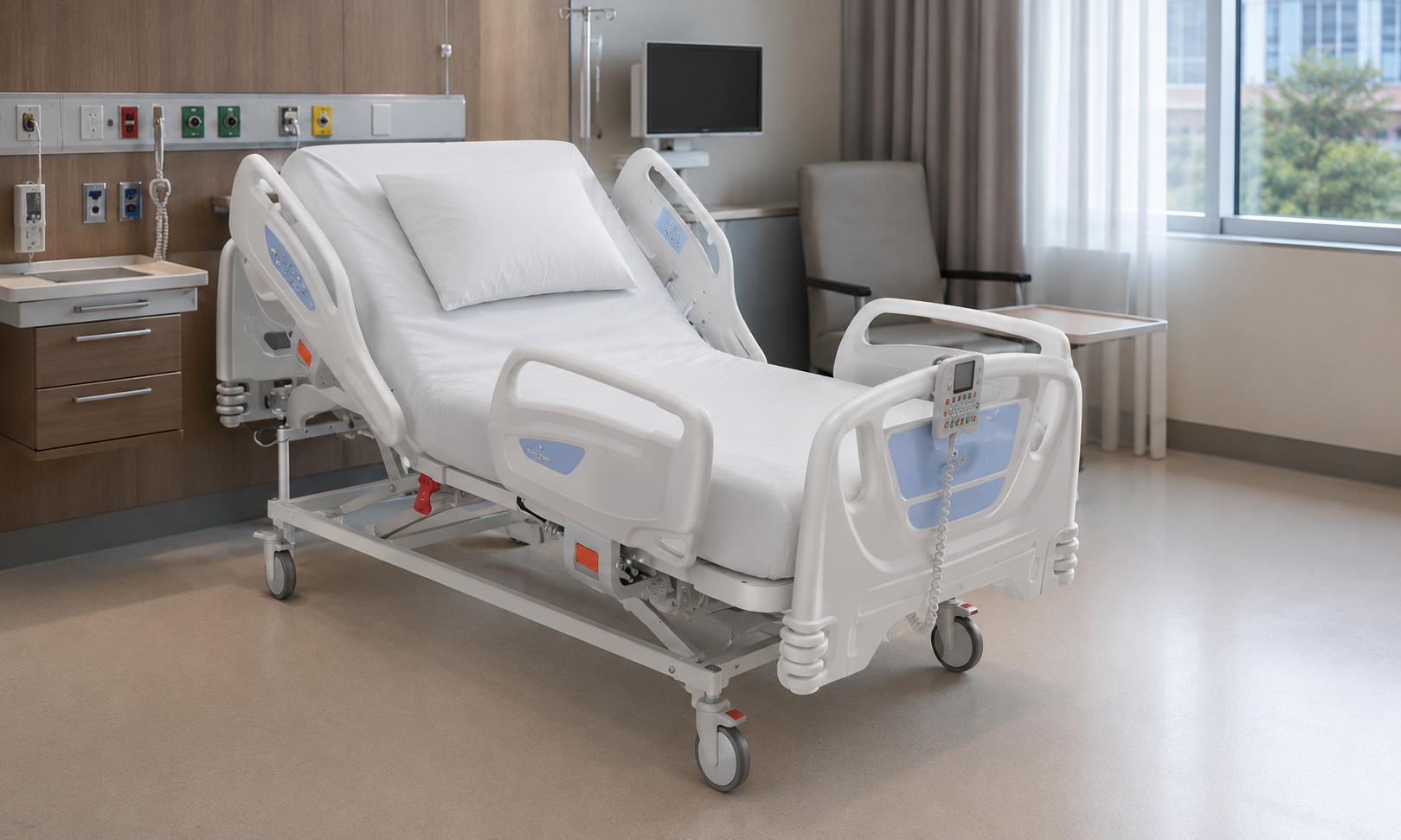

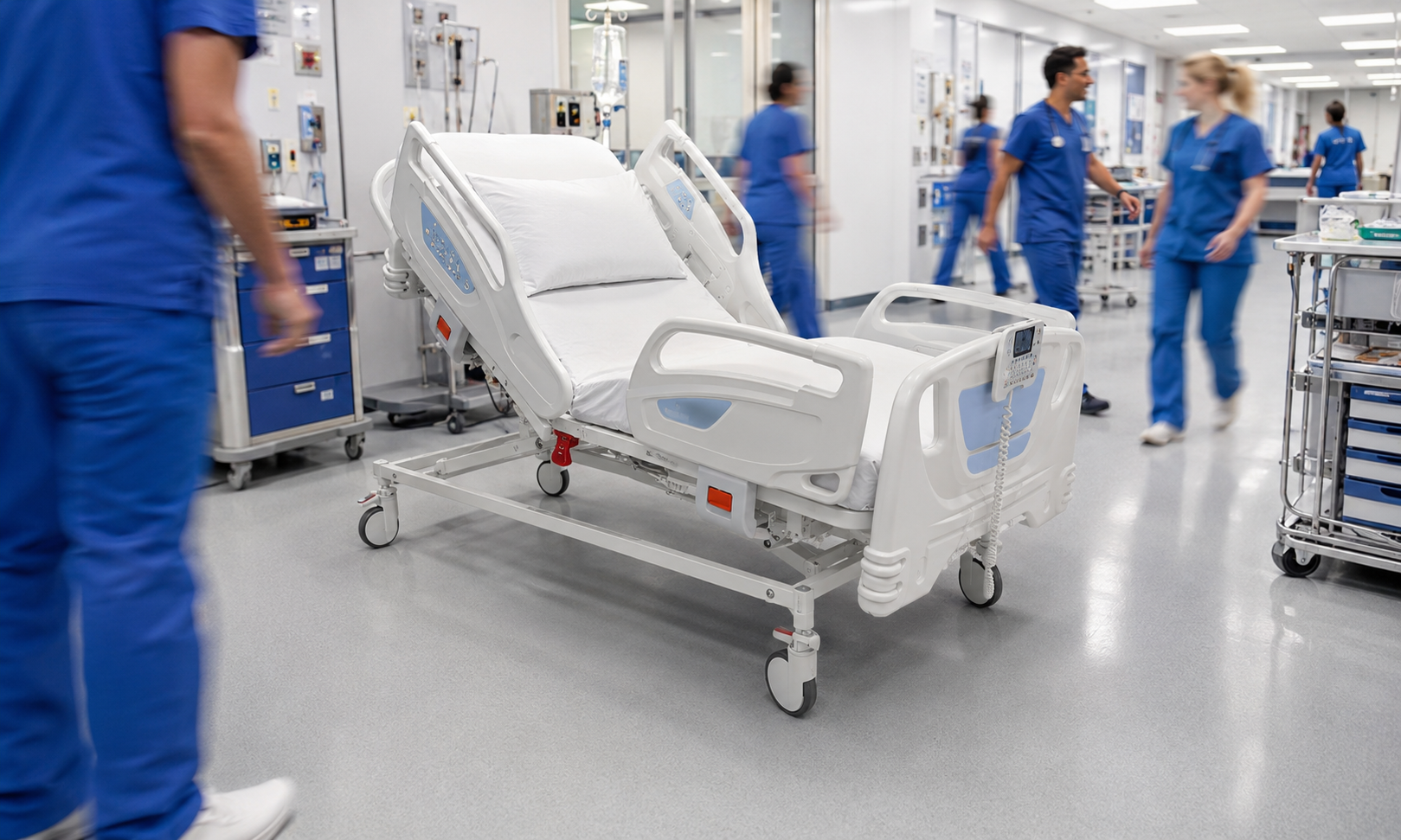

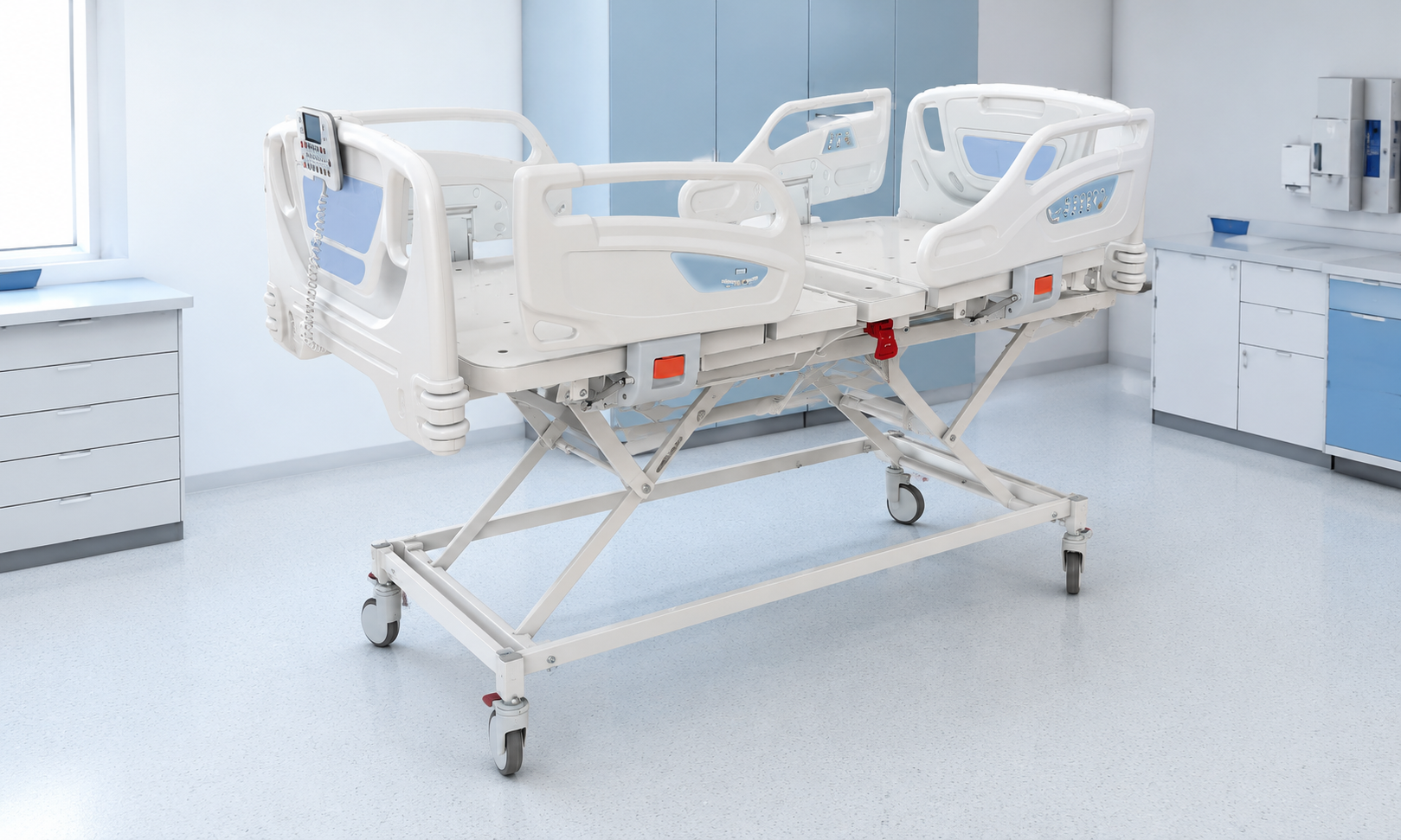

Novamed AW Series

Movements:

• Electric height adjustment, head raise and foot raise
• Head lift: 80°
• Leg lift: up to 90° knee break angle
• Trendelenberg:

Sizes:

• Single (91cm wide)
• King Single (107cm wide)

Platform Height Range:

• Height:
• Hilo Range: 450mm

Bed Length Options:

• 2000mm

Safe Working Load (SWL):

• Available in 220kg, 300kg, or 450kg capacity options.

Actuator System:

• Fitted with high-quality medical grade Dewert motors.

Frame & Finish:

• Heavy-duty steel frame
• Antibacteria powder-coated for long-lasting durability.

Included Features:

• Full Trendelenburg and Reverse Trendelenburg functionality – provides advanced patient positioning for clinical care, pressure management, and improved respiratory support.
• Four-sector safety side rails – compliant with ISO60601-2-52 standards, offering protection while allowing safe access for patients and carers.
• Removable head and foot boards – quick-release system for emergency situations and easy cleaning.
• Lockable patient control pendant – intuitive design with lockout functions to prevent misuse.
• Nurse control panel – centralised bed management with override capability for clinical staff.
• CPR release control – located on both sides of the bed for rapid emergency response.
• Bed extension kit – easily adjusts for taller patients without compromising safety.
• Compatible with all leading bed movers – ensuring safe, efficient transport across facilities.
• One-touch patient exit function – simplifies bed adjustments for safer transfers and mobility.
• 150 mm dual-wheel Tente castors – smooth rolling performance with swivel, steering lock, and central locking for maximum stability.
• Battery backup system – ensures bed operation during power failures.
• Anti-bacterial powder-coating – available in any colour, combining infection control with custom styling.

• Inbuilt Nurse Control – integrated into the bed frame for convenient clinical operation.
• Inbuilt Patient Controller – side rail–mounted controller for improved patient independence.
• Dual Wheel Castors Upgrade – enhanced stability and smoother manoeuvrability.
• Fifth Wheel Castor – improves manoeuvrability, especially in tight spaces or long corridors.
• Tente 200 mm Castors – heavy-duty option for smoother movement over uneven surfaces.
• Patient Weight Scale & Exit Alarm – integrated system to monitor weight and provide safety alerts if a patient attempts unsupervised exit.
• Night Light – discreet underbed lighting for safer patient mobility during the night.
• Fixed IV Pole – sturdy, hospital-grade IV pole that attaches directly to the bed frame.
• Range of Bed-End Materials for Aged Care – timber, laminate, or custom finishes for a homely, less clinical look.
• Removable Self-Help Pole / Lifting Pole – supports patient independence in repositioning.
• Oxygen Bottle Holder – safe and secure mounting for clinical use.
• Underbed Safety Lighting – automatic motion-sensor night light to reduce falls risk.

• AS/NZS 3551:2012
• ARTG: 275935, 275934, 275933
• ISO9001:2015 Certified: A153RA001QMS
• Meets & Exceeds ISO60601-2-52
• Electrical Compliance: AS/NZS IEC 60601-1
• Mechanical Compliance: AS/NZS IEC 60601-1-52
• NDIS: Item Code: 05_181210201_0103_1_2 Power Bed – Composite: 05_423_0103_1_2
